GC Pattern Resin

Name: GC Pattern Resin
Brand: GC
SKU: DGIN21117-93
Availability: OutOfStock
Rating: 4.8 (45 reviews)

sold by Zenith Dental Supplies Pvt Ltd

Estimate delivery time : 3 days

was 5,050.00

Now: ₹ 4,859.00Inclusive of GST.

Saving: ₹ 191.00

3.78% Off

1,000 Ganga Coins can be used
Privilege Members can use upto 2,000 coins

About this Product

Low polymerization shrinkage

Greater accuracy and dimensional stability
Improved defined margins

High strength; ultra smooth surface

No distortion
Strength is not compromised, even in thin layers

Excellent fluidity

Easy manipulation and handling due to thixotrophy
Allows for direct and indirect pattern making technique
High wettability of powder and liquid very easily without mixing

Ash-free

Leaves no ash or residue after burn out
Results in smoother cast surfaces

Quick setting time

Sets within 4 minutes
Sets significantly faster than any other product
Undetectable corrections and additions can be made, even after set

Simply perfect

Terrific acrylic resin
Prosthodontists favourite

Product Description

PATTERN RESIN LS is a self-curing, general purpose acrylic resin used for making patterns for fabricating copings, post and core build-ups, lingual and palatal bars, implant attachments, adhesion bridges, clasps, telescoping crowns and certain pre-soldering techniques.This product is formulated to provide a perfect fit. It is ideal for dentists and laboratories who perform difficult restorations due to the fact that it sets quickly with minimal shrinkage, allows both direct and indirect pattern making, and leaves no residue after burnout.

Indications

To make the pattern of:
Tapered coping for telescopic crowns and other telescope crowns
Inlay, palatal and lingual bar, connector and clasp
Maryland bridge.
Temporary splint for soldering
In the mouth for core build-up pattern
Construction of implant superstructures

Specifications

WARNINGS

The liquid is highly FLAMMABLE. Avoid sources of ignition.
In case of contact with eyes, flush immediately with water and seek medical attention.

PRECAUSTIONS

Do not mix with other chemically cured resins.
Do not return the residual powder and liquid to the bottle.
In case of contact with skin wash off with soap and water.

Directions

Step 1.Powder and liquid preparation Dispense adequate amounts of powder and liquid into each rubber cup.

Step 2. Building the coping (for secondary crown patterns of tapered crowns or telescopic crowns)

a) Moisten the tip of the brush with the liquid and pick up a small amount of powder.

b) Deposit this mixture on the crown and progressively build up the secondary crown pattern by repeating the procedure. In this case, no separating medium is required, but when working on a stone model, GC Acro Sep, GC Multi-Sep or Vaseline should be used as separator. - Clean the brush with liquid after use or during the work if necessary.

Step 3. Checking the internal surface of the pattern After the resin has set (3 min. at 23°C /73°F), remove the pattern carefully from the internal crown and check the margin and the internal surface .

Step 4. Fine adjustment

a) Return the pattern to the internal crown and make a uniform thickness (0.3-0.4 mm) by using a bur.

b) Remove the pattern and check the thickness with the measuring device.

Step 5. Waxing veneer and Cut out

a) Perform the wax-up with inlay wax.

Note: There is no need to clean the surface of the pattern resin with a cleaning agent before waxing.

b) Cut out the veneer for the facing .

c) Place the retention beads.

Step 6. Investing, Burning out and Casting For a single crown, all procedures can be performed in the usual manner. For a larger pattern, hold at 250°C (482°F) for 1 hour before raising to the final burn out temperature.

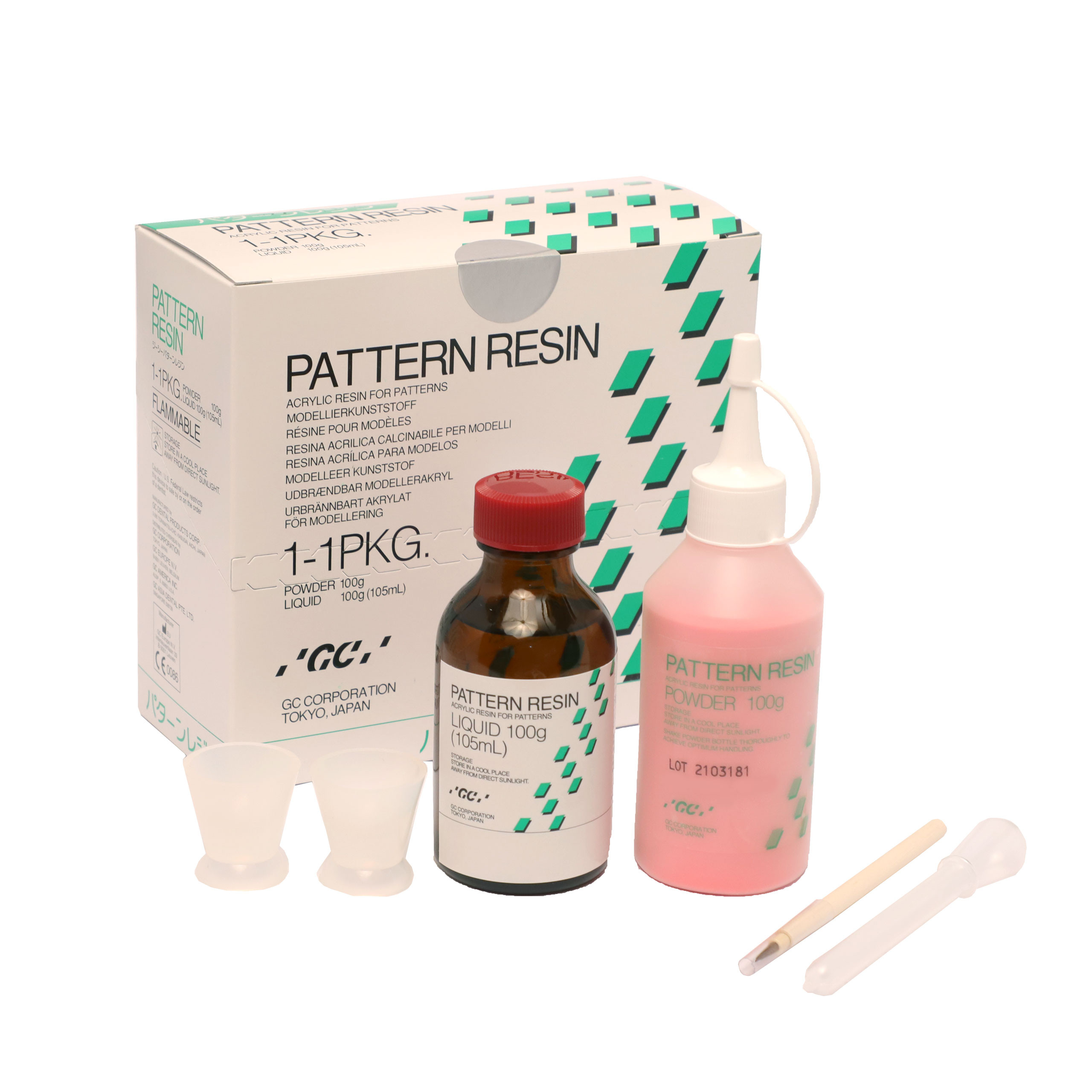

Packaging

1 x 100g Powder
1 x 105mL Liquid
Mixing cups
Brush

Technical Details

Brand	GC
Manufacturer	PDD
SKU	DGIN21117-93
Item Model Number	DGIN21117-93

Shipping Details

Item Height	16.00 cm
Item Width	18.00 cm
Item Length	8.00 cm
Item Weight	100.00 gram
