Hagen Led push button airotor

Product Description

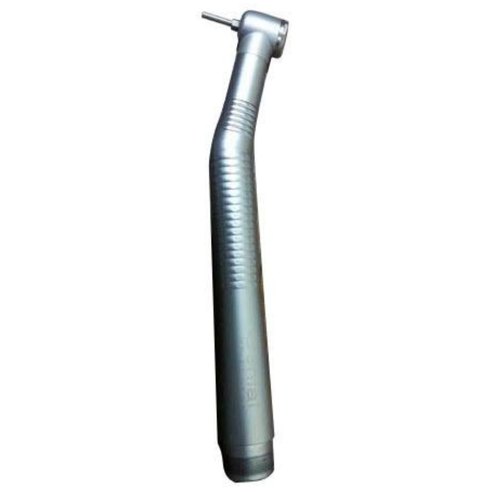

LD Airotor Led Push Button Handpiece (No Warranty) - LD-392

Presentation:

• LED handpieces to integrate E-generator 1piece
• Cap wrench 1 piece
• O-RING 1 set
• Cartridge 1 piece
• Operation Manual 1 sheet
• Needle 1 sheet

Usage method:

• Cartridge replacement unscrew the cap and take out the cartridge install a new cartridge put the cartridge into the cave of the head, press it Screw the cap with your hands first then use the wrench to fasten it. Attention: To protect the meticulous thread, please do not use the wrench at the beginning
• Burs do not use unqualified bur diamond bur shafts should follow the demands of ISO standard, diameter 1.59~1.60mm
Do not use a bent, damaged, or short handle bur
• Replacement of bur, Press the cap and take out the bur press the cap, insert the bur, and lose the cap to prevent an accident of dropping bur, and damage to the bearing, bur should be inserted to the bottom. External cleaning & maintenance :
*Clean the external side using 70% GL alcohol or another disinfecting agent without having an ammonium or acid basis or chlorine.
*Do never immerse the handpiece in disinfection baths.
*Lubricate the turbine before each sterilization cycle handpiece which is not subject to a sterilization process must be lubricated before initializing each work period
*Apply only original lubricates from NSK
*Sterilize the handpiece and bur changer in autoclave up to 135°C 20 MINUTES WITH 121°C, and 15 minutes with 135°c withdraw handpiece from autoclave after sterilization.

Led cleaning :

Clean the LED USING 70% GL Alcohol or other disinfection agents without having an ammonium or acid basis or chlorine. Improper care and maintenance may lead to premature wear and failure of the handpiece

Replacement of O-ring :

Press the O-ring with thumb and index finger, move forward, and take out the O-ring
Install new O-ring and spray oil on it.Do not use Vaseline and some other grease.
